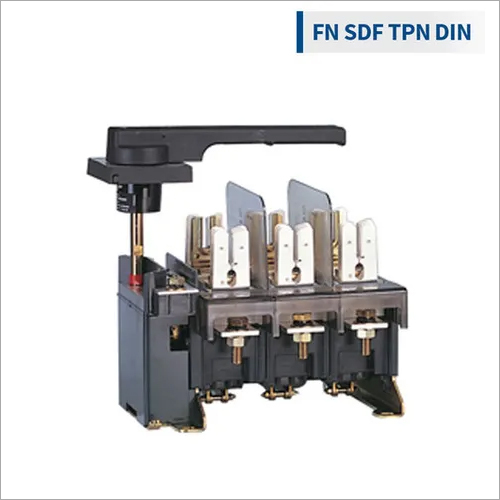

About SWITCH Disconnector Fuse
Features offered by FN S-D-F
Range 32A to 800A, 415V, AC 23A
Suitable for Cylindrical Telescopic shaft for depth adjustment Door interlock & padlock facility FN 4-Pole with in-built Neutral Link Terminal shrouds on both sides
Advanced Protection & VersatilityThis disconnector fuse combines the efficiency of manual operation with a high breaking capacity up to 80 kA and compatibility with HRC cartridge fuses. It suits varied current ratings from 32A to 630A and accommodates different terminal types, offering flexibility for industrial and commercial installations. Panel or DIN rail mounting ensures convenient integration, while multiple pole options serve specific circuit needs.
Compliance & ReliabilityCompliant with IEC 60947-3 standards, this unit ensures safe and reliable operation in critical circuits. Engineered with high-grade insulation and copper alloy contacts, it withstands electrical surges (impulse voltage up to 8kV) and offers insulation resistance of 100 M. Its high mechanical endurance and fast response time (< 0.1 sec) guarantee operational longevity in demanding environments.
FAQs of SWITCH Disconnector Fuse:
Q: How do I select the appropriate SWITCH Disconnector Fuse model for my application?
A: Begin by determining your systems voltage (up to 690V AC) and current requirements (options: 32A to 630A). Consider your applicationwhether it involves low-voltage distribution, motor protection, or control panelsand choose the correct number of poles (1P to 4P). Verify compatibility with your preferred HRC cartridge fuse and terminal type (bolt, lug, or screw).
Q: What are the main benefits of using this fuse in industrial control panels?
A: This disconnector fuse provides dependable circuit protection with high dielectric strength, excellent insulation resistance, and a rapid response time of less than 0.1 seconds. Its robust mechanical life (up to 10,000 operations) and selectable modular configuration ensure low maintenance and flexible adaptation to different panel layouts.
Q: Where can SWITCH Disconnector Fuses be installed?
A: They are designed for both panel and DIN rail mounting, facilitating installation in power distribution boards, motor control centers, and a wide array of industrial panels. Their protection class (IP20/IP30) ensures safety in various indoor environments, commonly used across manufacturing, utilities, and commercial sectors in India.
Q: When should I replace the fuse, and what process should I follow?
A: Replace the fuse whenever it blows, indicated by circuit interruption or a visible broken fuse element. Before replacement, always isolate the supply. Select a compatible HRC cartridge fuse matching the current rating, voltage, and physical size specified by the manufacturer, and fit the new fuse securely into the disconnector.
Q: What standards does this disconnector comply with and why is that important?
A: It meets IEC 60947-3 safety and performance standards, ensuring reliable disconnection under load, enhanced safety for maintenance, and compatibility with international industrial systemsa key factor for projects with strict compliance requirements.
Q: How does operating temperature affect performance?
A: With an operating temperature range of -25C to +55C, the device maintains optimal performance in varied climates, making it suitable for most industrial and commercial settings throughout India.
